Features
-
Remote control wall panel for control of up to four zones
-
Contemporary design fits in with any décor
-
Intuitive layout with touch sensitive controls
-
Easily configured to suit your venue
-
Easy access to everyday functions
-
Very competitive pricing

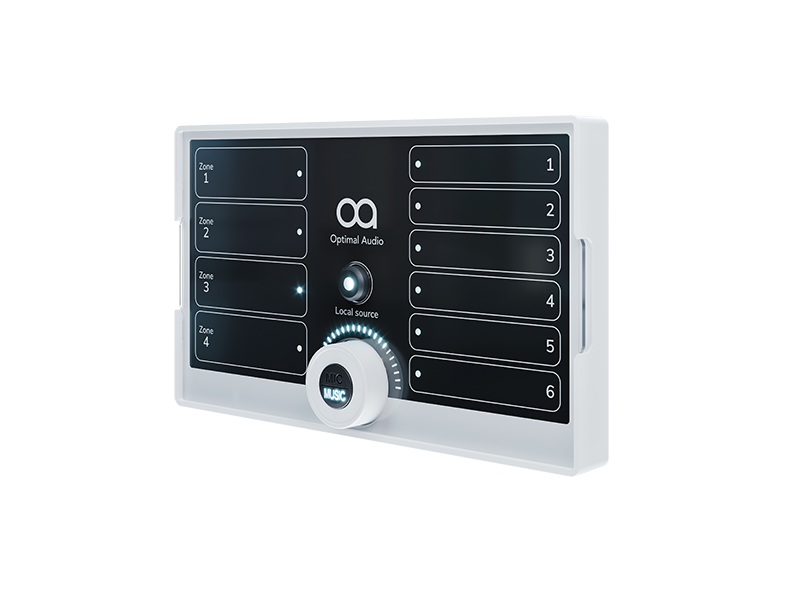

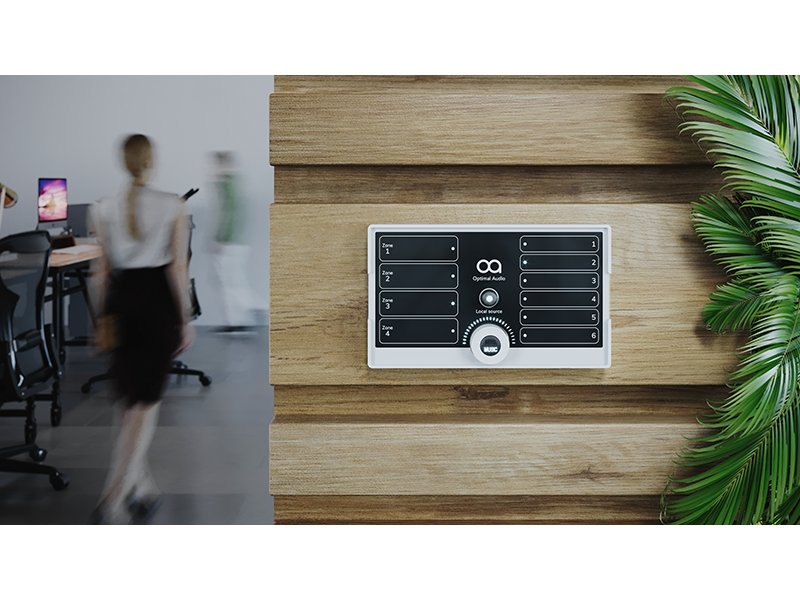

ZonePad 4 is an elegant wall mounted controller, providing users clear and simple access to the essential controls of four zones of an Optimal Audio system.
It gives all users the confidence and access they need to operate the system and features a clean, slick intuitive touch interface.
ZonePad 4 enables selection, volume control of playback sources and microphones to be easily controlled across 4 zones of audio from one position.
Specifications
|
TYPE
|
4 zone wall controller
|
|
MAXIMUM DISTANCE (CAT5)
|
500m
|
|
CONNECTION
|
RJ 45
|
|
DATA PROTOCOL
|
Optimal Audio proprietary over CAT 5
|
|
CASE MATERIAL
|
Zinc plated steel, ABS
|
|
LENS MATERIAL
|
Clear acrylic
|
|
BACK BOX
|
2-gang 25mm deep back box
|
|
DIMENSIONS
|
(W) 146mm x (H) 86.2mm x (D) 39.3mm
(W) 5.75” x (H) 3.39” x (D) 1.55”
|
|
WEIGHT
|
0.35kg (0.8lbs)
|
