20 W RMS/80 W peak - 100 V - 2-way - ABS
Four power taps and 8 Ω
Easy installation
Horizontal and vertical positioning
Protected against dust ingress and downpour (IP54)

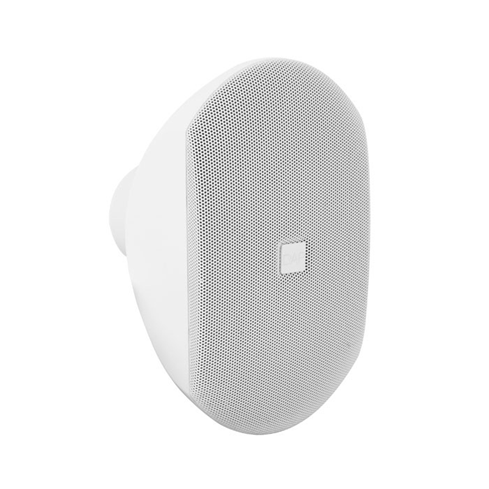

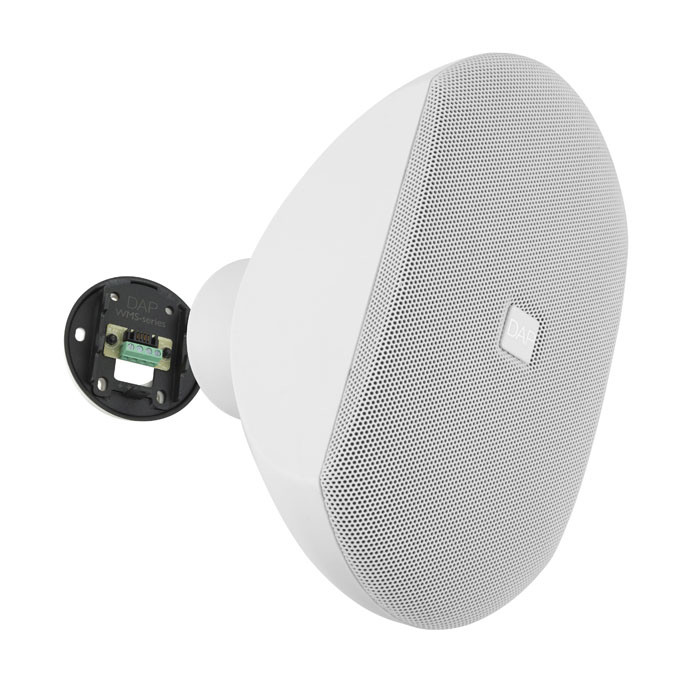

The DAP WMS4T-B is a white 4-inch design wall speaker suitable for 100 V audio installations. The smart design of this speaker allows you to mount it easily by using the included wall mounting plate. This is very beneficial for installers to get the job done quickly. In addition, it is a versatile design speaker that uses a ball joint to make it easily tiltable over 30° in both horizontal and vertical directions and rotatable over 90°. Therefore, the DAP logo on the front is rotatable. Due to the quick, easy installation and versatile applicability, this type of speaker is excellent for use in a lot in public spaces, such as shops, restaurants and even clubs.

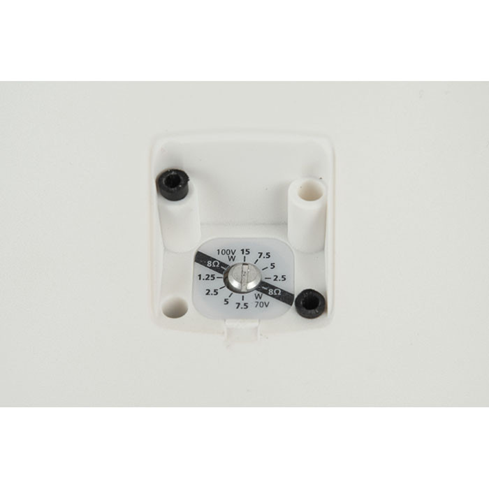

The WMS4T-B is equipped with a 2-way system and therefore has a clear full-range sound. With a maximum RMS power of 20 watts (80 W peak), it can produce an SPL of up to 98.5 dB at 1 metre. The volume can be adjusted to the volume of other components in the system due to the presence of multiple power taps on the transformer.
A sturdy ABS housing protects against the ingress of dust and splash water. This means you can even use the speakers in damp places and sheltered outdoor locations, for example on a porch.
Audio Specifications
Speaker System
2-way
Speaker Sensitivity (1 W/1 m)
86.5 dB
Speaker Impedance
8 Ω
Maximum SPL at 1 m
98.5 dB
Frequency Response Minimum
90 Hz
Frequency Response Maximum
20000 Hz
Woofer Diameter
4 "
Woofer Voice Coil
1 "
Woofer Magnet Type
Ferrite
Compression Driver Voice Coil
0.7 "
Compression Driver Magnet Type
Ferrite
Dispersion Angle Horizontal
60°
Dispersion Angle Vertical
30°
Mechanical Specifications
Height (mm)
260 mm
Width (mm)
144 mm
Length (mm)
180 mm
Installation Depth (excl. connector)
180 mm
Material
ABS
Colour
Black
Finish
Painted
Weight
1.9 kg
IP Rating
IP54
