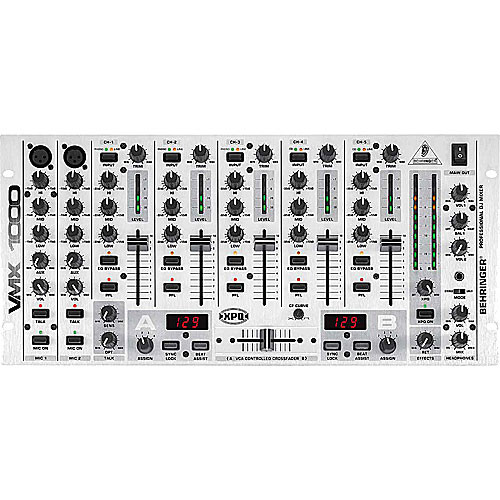

The Behringer VMX1000 is a rack-mountable, full featured 7 channel DJ mixer suitable for mobile and home DJs and well as club installation. There is no shortage of input routing in the VMX1000 with 3 dedicated turntable/line switchable inputs, 5 line inputs and 2 dedicated CD inputs all via RCA connectors. There are 2 channels dedicated for microphone inputs. The output section features both balanced XLR and unbalanced RCA connections. An effects send and return enables external effects to routed. The compact VXM1000 is a reliable mixer with all the function required by season professionals, yet cost effective and straight forward enough for the beginner.
Channels: 7

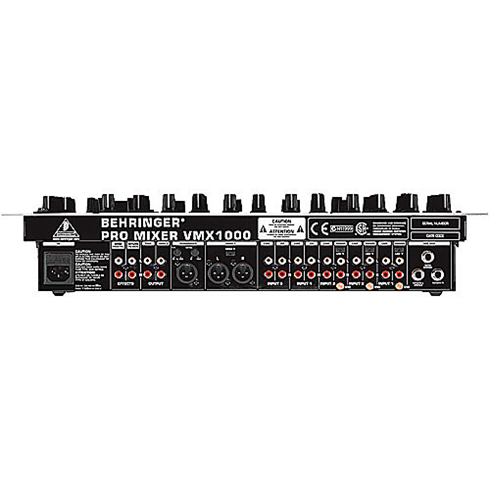

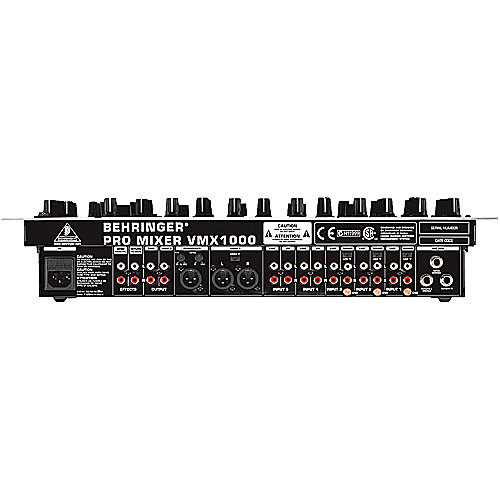

Input Connectors: 3 Turntable (phono)/Line: L/R RCA Phono Unbalanced
5 Line: L/R RCA Phono Unbalanced
2 CD: L/R RCA Phono Unbalanced
2 Microphone: XLR Connector
Return: L/R RCA Phono
Output Connectors Main 1: L/R Balanced XLR
Main 2 (Monitor): L/R RCA Phono Tape: L/R RCA Phono
Headphone: 1/4" Phone TRS
Send: L/R RCA Phono
SubWoofer Out: Balanced 3-pin XLR
Signal to Noise Ratio: Line: Better than 80dB
Frequency Response: 10Hz to 65kHz +0/-3dB
EQ Section: Stereo Low: +12dB / -32dB @ 50Hz
Stereo Mid: +12dB / -32dB @ 1.2kHz
Stereo High: +12dB / -32dB @ 10kHz
Mic Low: +/- 15dB @ 80Hz
Mic Mid: +/- 15dB @ 2.5kHz
Mic High: +/- 15dB @ 12kHz
Power: USA / Canada: 120V ~, 60Hz
Power Consumption: 32W
Dimensions: 107 x 483 x 223mm (HxWxD)
