Rated frequency range: 60 Hz - 20 kHz
Sensitivity (SPL 1 W/1 m): 87 dB
Coverage pattern1: 115° conical
Power handling (@ 8Ω): 75 W (with overload protection)
Rated impedance: 8 Ω
Recommended High-Pass frequency: 60 Hz

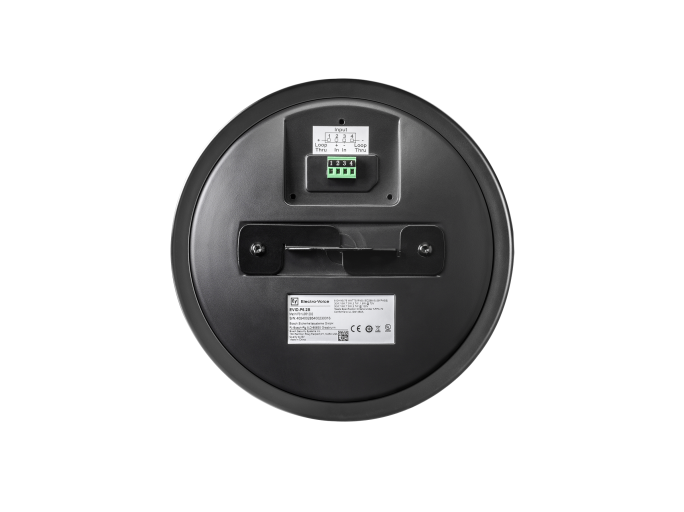

Input configuration: 8Ω; 70V/100V
70V/100V power taps: 1.8 (70V only)/3.7/7.5/15/30 W
LF transducer: 6.5 in (165 mm) high-compliance driver (weatherized cone)
HF transducer: 1 in (25 mm) titanium dome

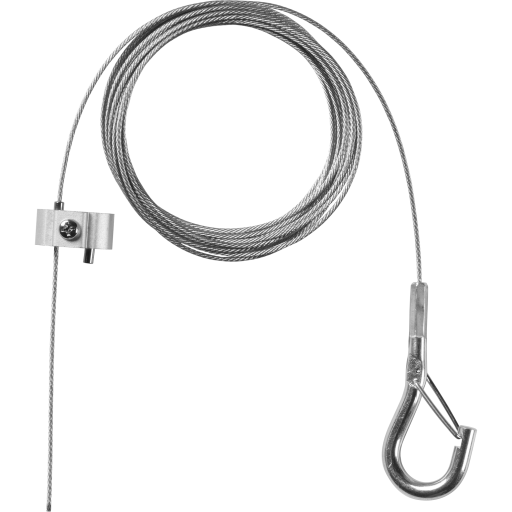

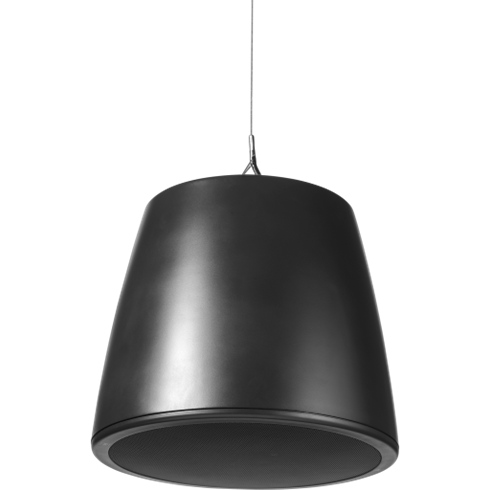

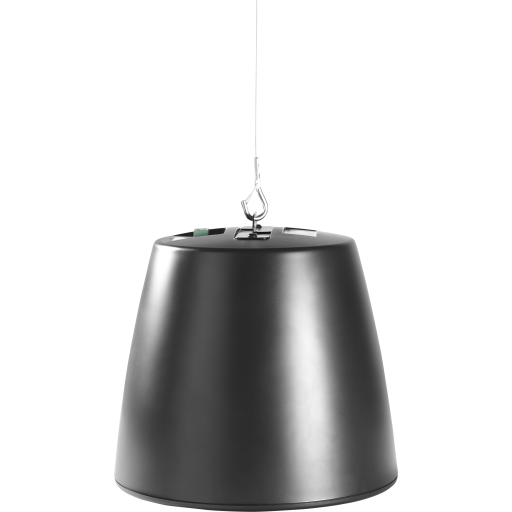

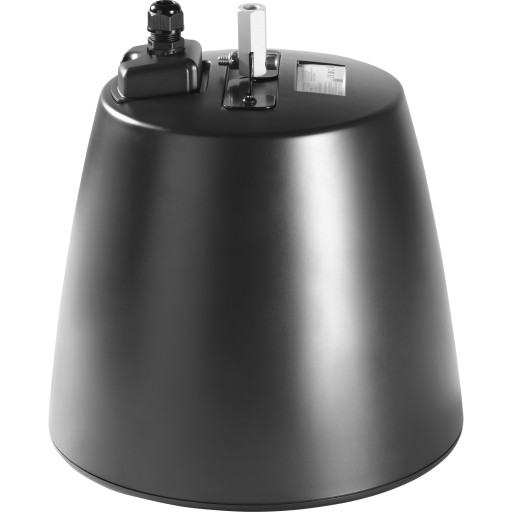

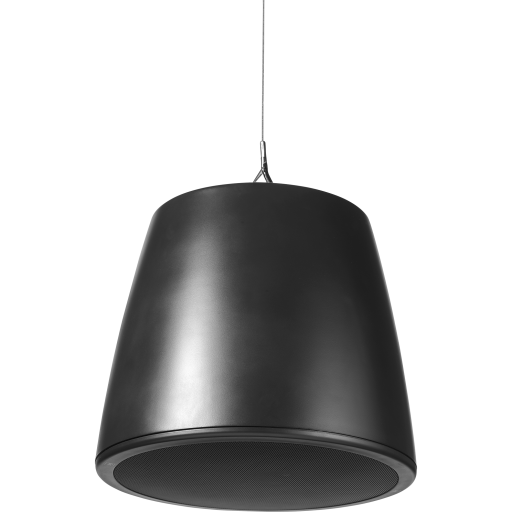

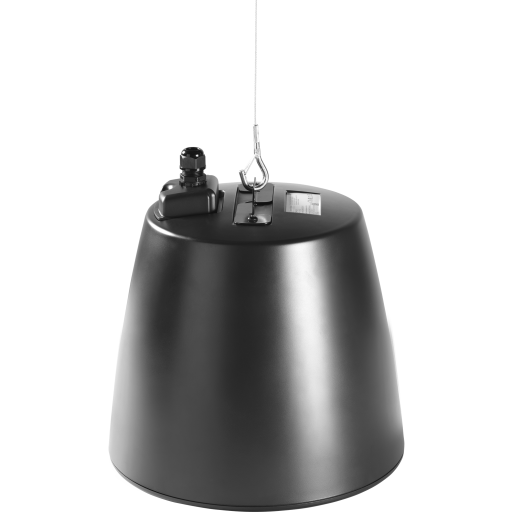

Mounting system: Rear mounted suspension points
Acoustic design: Ported cabinet, two-way design, internally damped, w/passive crossover
Approvals: CE, UL 1480A, CSA 22.2
Cabinet construction: UL94V-0 rated enclosure and baffle

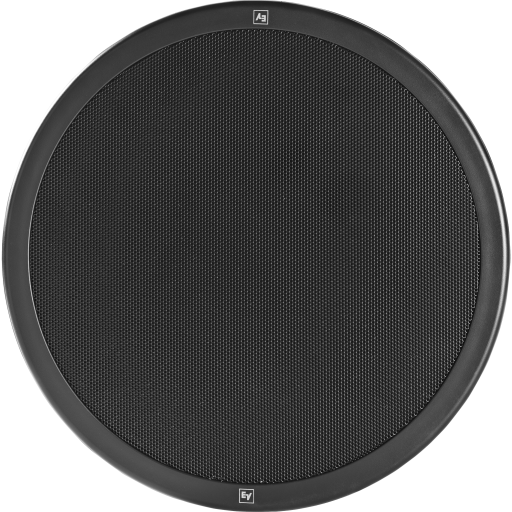

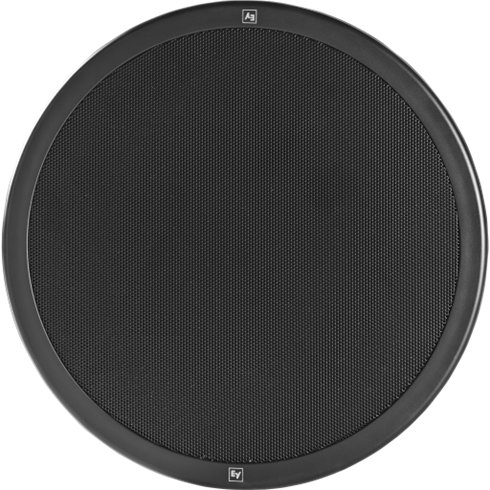

Grille construction: Powder-coated steel

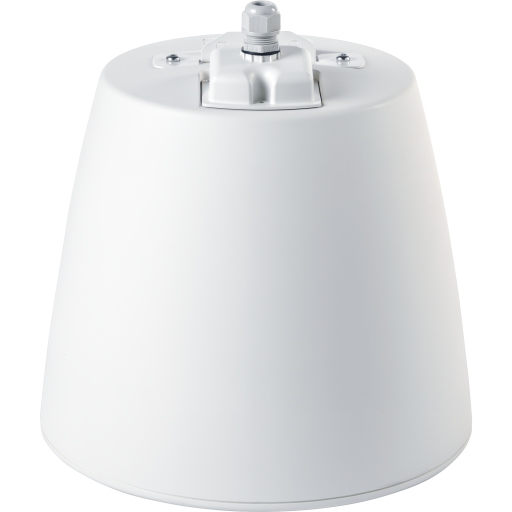

Colors: Black or white
Dimensions (depth x diam.): 11.9 in x 12.2 in (301.0 mm x 310.0 mm)
Net weight: 5.28 kg
Shipping weight: 6.28 kg

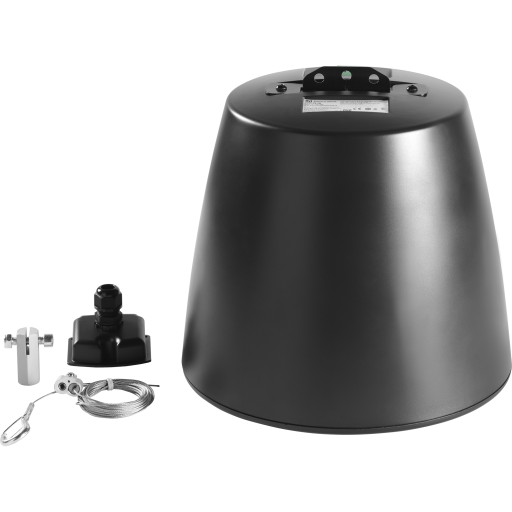

Included accessories: Grille removal tool
