DAP-Audio ZA-7250
DAP-Audio ZA-7250
DAP-Audio ZA-7250
DAP-Audio ZA-7250

Kod proizvoda:1796

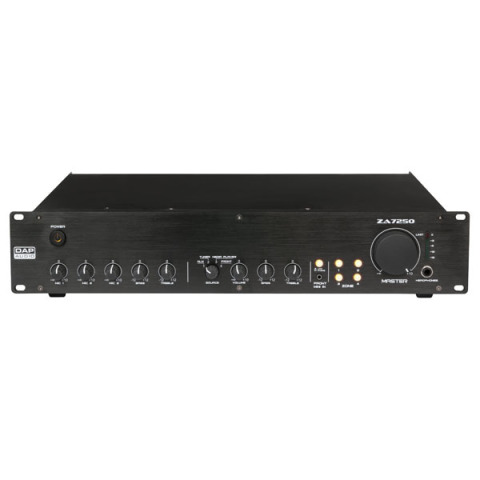

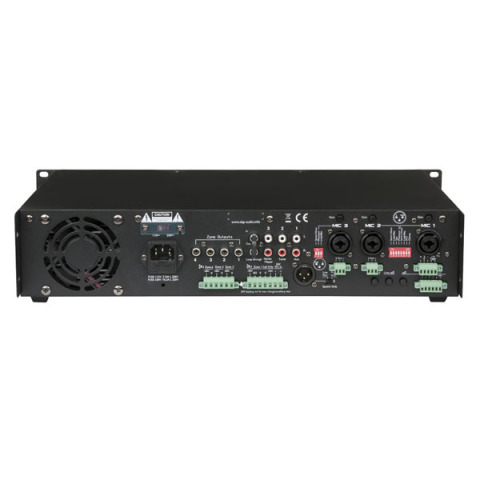

DAP-Audio ZA-7250

100V pojačalo 240W - 4 zone, 7 ulaza, telefon input D6152

80.400,00

Specifikacije proizvoda:

  • 100V snaga:
    • 240W
  • Težina:
    • 12kg

Opis proizvoda:

The DAP PA-7250 is a 240 Watt, 100V amplifier mixer with 4 selectable sources, 3 microphone inputs and 4 zones. All microphone inputs are equipped with phantom power and can be selected as line input. An integrated speech filter can be applied to improve the audibility. It has 3 dedicated line inputs on the backside and a special easy access line/phone front input to connect mp3 players or mobile devices. The amplifier also has enhanced features such as, priority, chime with adjustable level, emergency input, ducking level control, loop through connection and an output which can be set as line output, music only or microphone only. Each zone also has its own line outputs to connect extra amplifiers and extend the PA system.

These amplifiers are designed for PA systems with applications such as announcement, intercommunication, background music and broadcasting in convention-halls, shopping centers, dining rooms, auditoriums and recreation areas. These desk top amplifiers have an integrated protective circuit to withstand overload or short-circuits of output. This results in very high reliability and easy installations without extra audio processors. It is a complete range from simple amplifiers till matrix amplifiers with built-in tuner and media player.



Specifications

Outputs
Power: 240W
Zones: 4
100V & 8Ohm: Terminals
Line output: XLR
Loop through: RCA
Headphones: 6,3mm Jack

Inputs
3x Mic/Line: XLR/Jack combi & Terminals
3x Line: RCA
Front input: 3,5mm Jack

Features
Speech filter: -3dB, 300Hz 6db/oct
Phantom power: 18V
Tone Control: Bass 100 Hz, treble 12 KHz, +/-12dB
Chime: adjustable volume
Ducking: adjustable suppression
PTT: Mic input 1
VOX: Mic input 2
Telephone input: Override all, terminal

General
Power supply: 230V AC
Back-up power supply: DC 24V
Power consumption: 500W
Power connection: IEC
Dimensions: 483x328x88mm (WxDxH)
Weight: 12 Kg
