Full power output supporting 4Ω, 8Ω, 70 V and 100 V
-
EMG override input, ensuring critical messages are heard clearly
-
Contact override with 2-tone chime for attention-grabbing alerts
-
120 Hz high-pass filters to customize audio output and eliminate unwanted low-frequency noise
-
Space-saving compact ½ rack design, providing versatility without compromising performance
-
Remote activation of standby mode with Remote OFF (Stand by), enhancing energy efficiency
Voltage: 100 VAC - 240 VAC, 50/60 Hz
Power: 800 VA
Consumption: Standby (Remote OFF active) 1.25 W, Idle mode 9 W / 11 W
Remote power (ON/OFF Stand by) 2-pin, Eurostyle, contact closure
Frequency response, -3 dB ref. 1 kHz
Any input to output: <10 Hz — 22 kHz
Distortion: <1% @rated output power, 1 kHz
Output stage topology: Class D
Equalization
Bass shelving: ±12 dB / 150 Hz — 3 dB (100 Hz)
Treble shelving: ±12 dB / 5 kHz — 3 dB (10 kHz)
Filter
LO-CUT permanently: f=20 Hz, 12 dB/oct.
LO-CUT switchable, can be activated: f=120 Hz, 12 dB/oct.
Specifications
General

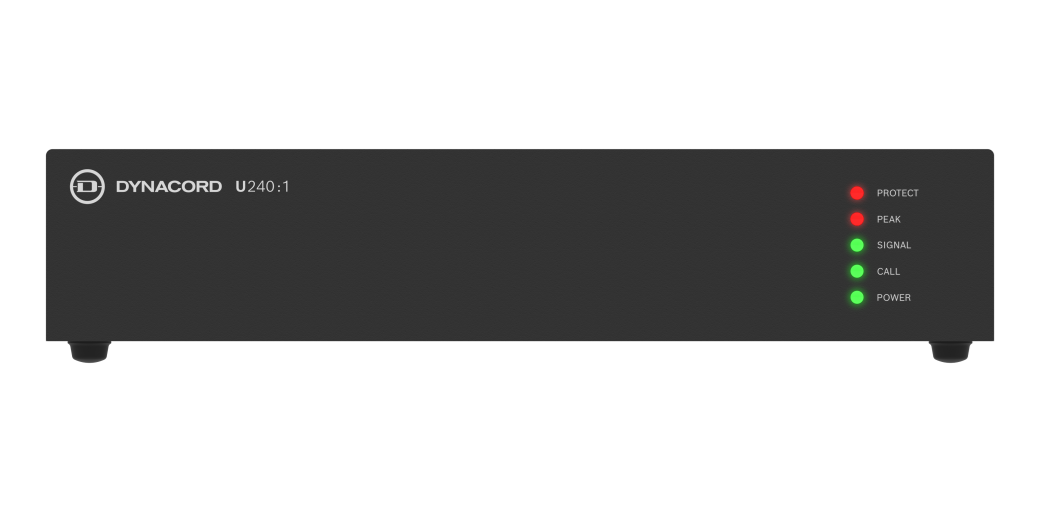

Front status LEDs
Protect (Red): Protection, short circuit
Peak (Red): 1 dB before clip (input and output)
Signal (Green): Input and output signal
Call (Green): EMG
Power (Green): Power on condition
DIP switches: EMG (HiZ/Line level), HPF (120 Hz), Output (HiZ/LowZ), Amp mode (70 V/100 V; 4Ω/8Ω)
Protections
Amplifier: Audio limiters, high temperature, DC, HF, short circuit, over current protection
Switching mode power supply (µPC controlled): Mains over/under voltage protection, inrush current limiter, mains over current, high temperature
Remote power OFF: Contact closure
Inputs
Number of inputs 1
Input
Type: Line
Connector: RCA (chinch), stereo converted to mono, unbalanced; 3-pin Eurostyle, balanced
Sensitivity: 100 mV
Impedance: 4.6 kΩ
S/N (flat @max volume): >60 dB
S/N (flat @min volume/muted): >95 dB
Headroom: >19 dB
EMG Input
Type: Line; 100 V
Connector: 2-pin, balanced
S/N: (A-weighted) ≥98 dB
Loudspeaker output
Connector: 4-pin Eurostyle (2 pin for LowZ, 2 pin for HiZ)
Rated output power: 240 W
Max output voltage, 1 kHz, THD=0.5%, no load: 4 Ω 8 Ω 70 V 100 V 31 VRMS 45 VRMS
Mechanical
Enclosure
IEC protection class: Class I (grounded)
Dimensions (HxWxD), without acessories 44.2 mm x 218 mm x 217.7 mm
Color in RAL: RAL 9017 Traffic black
Net weight (without accessories): 1.86 kg
Net weight (with accessories): 2.32 kg
Shipping weight: 2.68 kg

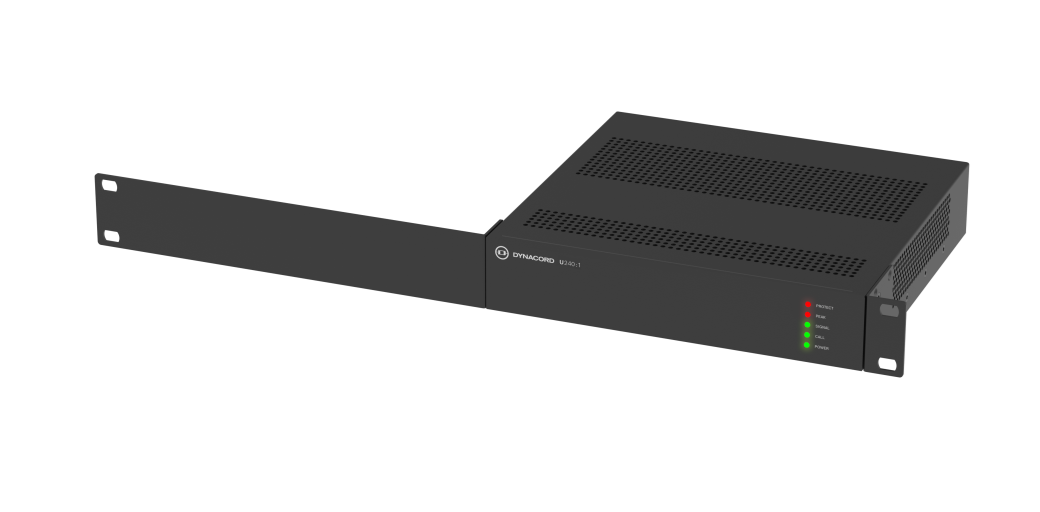

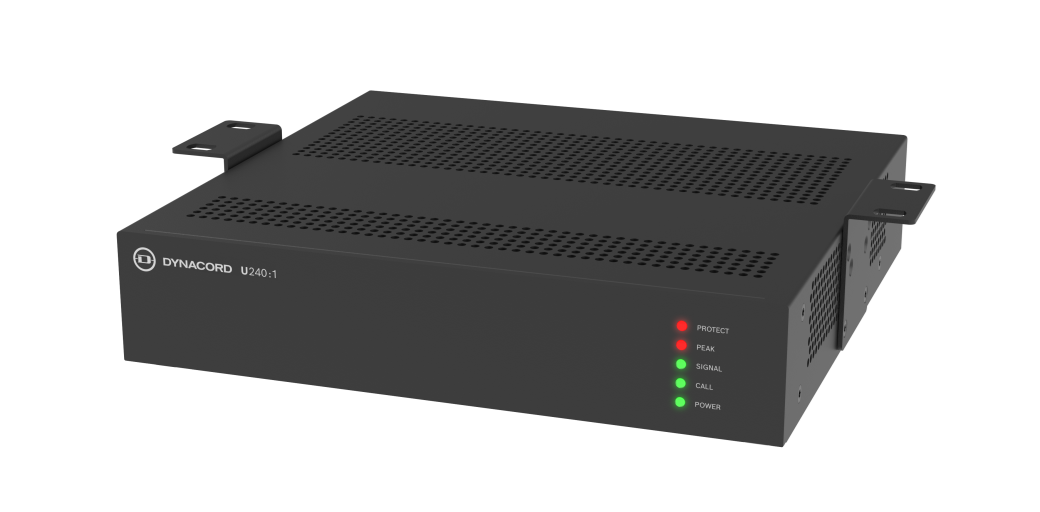

Mounting: Stand-alone; 19" rack; rack side-byside; half 19" rack; table-top; undertable
Environmental
Climatic conditions
Cooling concept: Four-stage-fans (Off / Slow / Medium / Fast)
Operating temperature: -5°C — 45°C
Storage temperature: -40°C — 70°C
