37.40” (950 mm) high
12x 2.5” (63.5 mm) mid-high drivers
2x 6.5” / (165 mm) woofers in band-pass
25°/45° vertical coverage (switchable)
140° horizontal coverage
45 Hz-16 kHz
129 dB SPL (peak)
8 ohms, 600W program
Frequency range (-10dB, half space): 45 Hz - 16 kHz*
Maximum SPL: 129 dB*
Axial sensitivity (dB SPL 1W/1m): 92 dB*
Acoustic down-tilt (relative to horizontal): -7.5°
Coverage angle HxV: 140° x 25°/45° (narrow/wide)
Power handling (continuous): 300 W
Power handling (program): 600 W
Peak input voltage: 145 V*
Nominal impedance: 8 Ω*
Recommended high pass filter: ≥50 Hz Butterworth 24 dB/oct
Transformer taps (70V line): N/A
Transformer taps (100V line): N/A

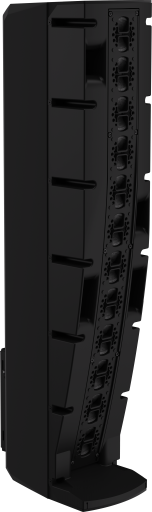

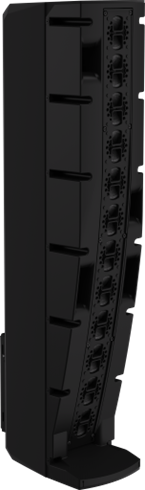

Transducer quantity/size: Twelve 2.5 in mid-high drivers, Two 6.5 in woofers in band-pass
Connector type: 4-pin Phoenix/Euroblock, (input + pass-through)
Maximum wire size: 10 AWG
Suspension points: Four M8 hardpoints

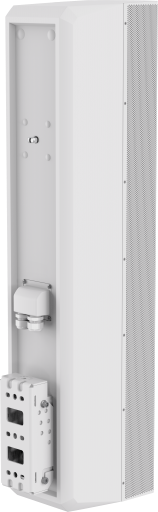

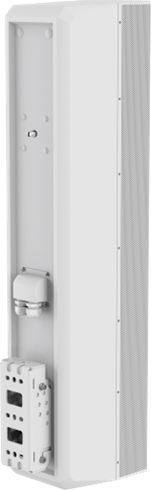

Mounting: SwifTilt multi-angle tilt + pan bracket
Vertical down-tilt angles: 0°, 2.5°, 5°, 7.5°, 10°, 15°, 20°, 25°
Maximum horizontal pan angle: +/- 80° (at all down-tilt angles)
Weatherization: Full Exposure (FW), IP55
Color: RAL 9004 black or RAL 9003 white
Dimension (H x W x D): 950 mm x 185 mm x 250 mm
Weight: 15 kg
Included hardware: Tilt Bracket, Pan Bracket, Gland Nut Weather, Cover, Dual-ended Allen/TR20 Key, M8x20mm Eyebolt (Pre-installed)
