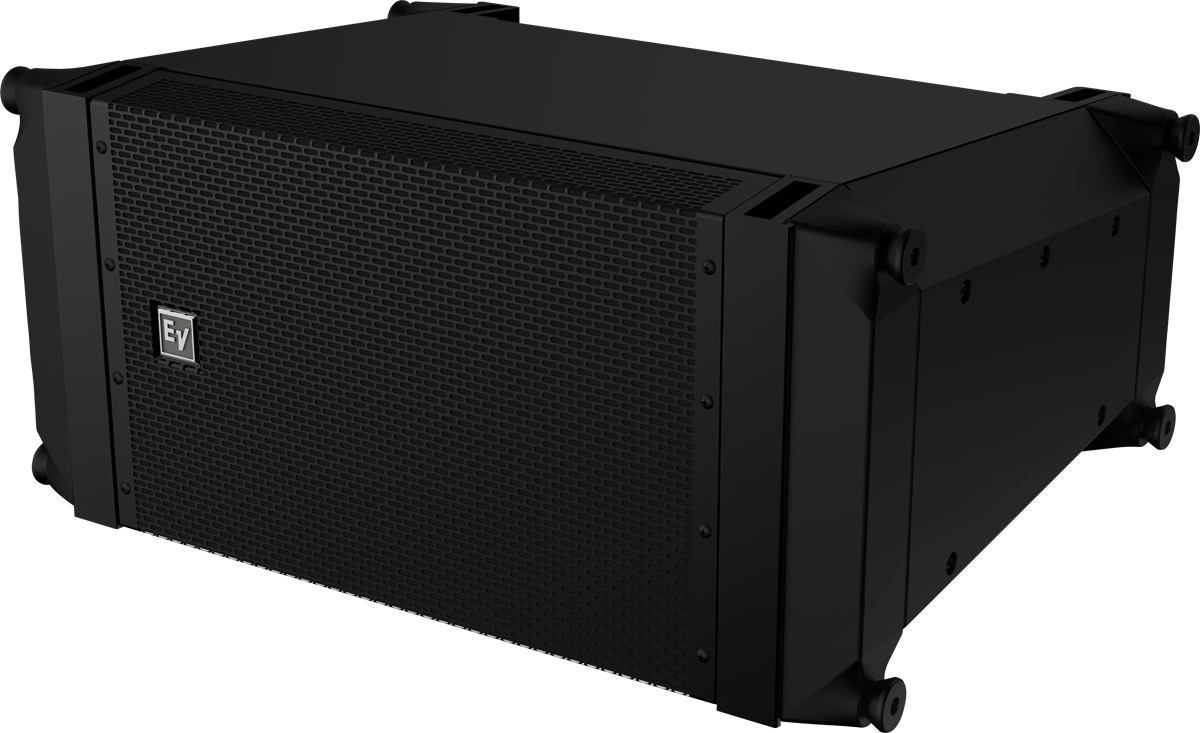

The X1 system combines innovative new technologies and time-saving features to advance the state of high-end sound reinforcement. The compact design of the X1 enables its use in a wide variety of applications.
-
Mid-Band Hydra (MBH) Superior Box Coupling
-
Wavefront-Shaping Circular Hydra (WCH) Extended Linear HF Performance
-
Integrated Rigging System (IRS) Quick Setup
|
Frequency Response (-3 dB) |
57 Hz - 16 k Hz |
|
Sensitivity 1 W/1 m |
98 dB |
|
Coverage (Nominal -6 dB) H |
90 ° |
|
LF Transducer |
12" SMX2121 |
|
HF Transducer |
Two 2" ND2R |
|
Enclosure Material |
EVCoat-coated birch plywood |
|
Height |
342.9 mm (13.5") |
|
Width |
723.9 mm (28.5") |
|
Depth |
536.6 mm (21.13") |
|
Weight Net |
41.73 kg (92 lbs) |
